Analog programmer for Secondary Nebulization Δ Drip & Fresh

The nebulization programmer per second Drip & Fresh is the ideal solution to automate your nebulization system with ultra-cut cycles. Your system 2 analog dials allows you to configure 133 different combinations, adjusted to the typical needs of any installation.

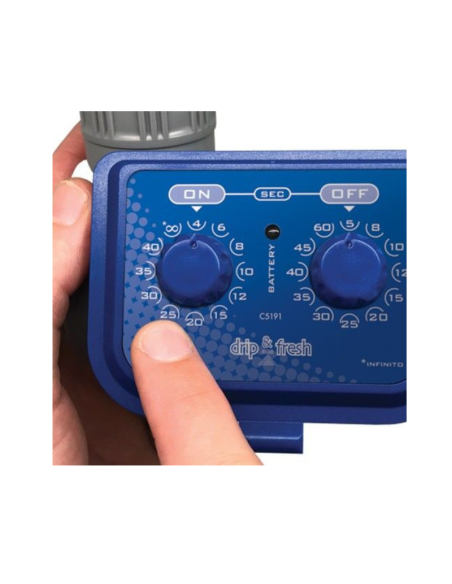

The left dial controls the opening time (ON) and the right closing time (OFF), both expressed in seconds. Its simple and resistant design makes it suitable for both professional and domestic use.

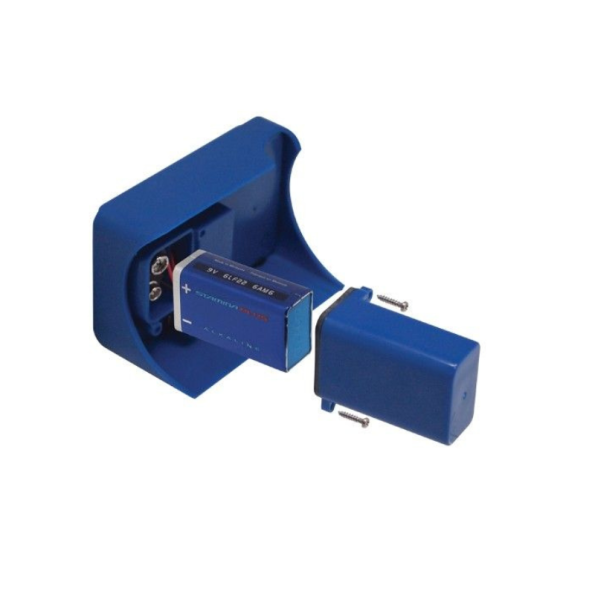

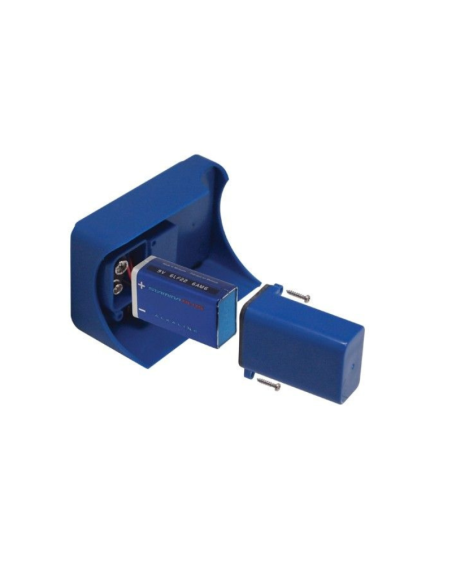

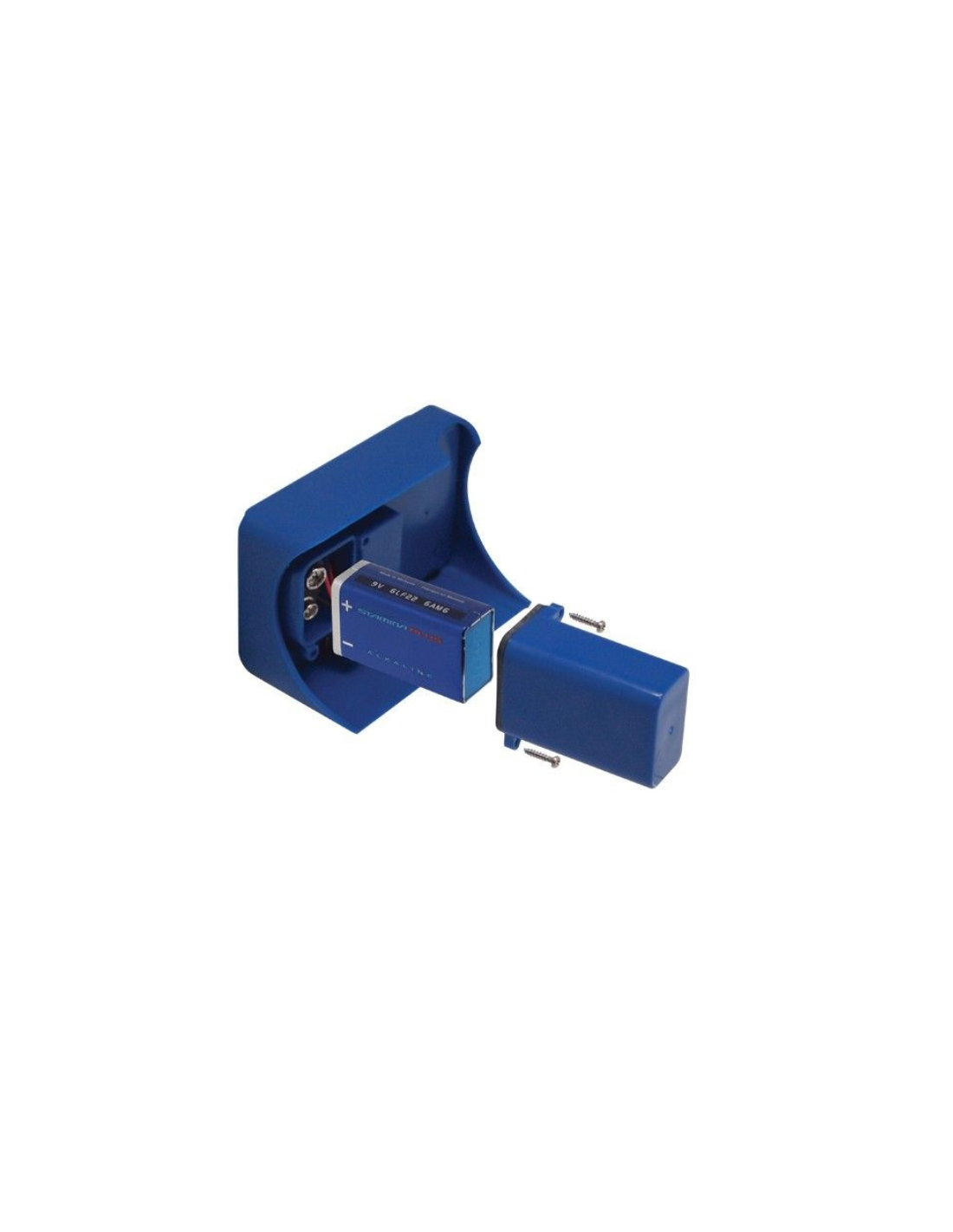

Installation of batteries

The programmer works with a 9V battery (not included). A LED light acts as an indicator of battery status:

• If the LED light flashes every 4 seconds, the battery's in good condition.

• If the blinking is faster, indicates low battery and must be replaced.

◾ Important: For correct operation, the use of alkaline batteries. Do not use rechargeable batteries.

Programme

1. Turn on the programmer by placing the switch in position ON.

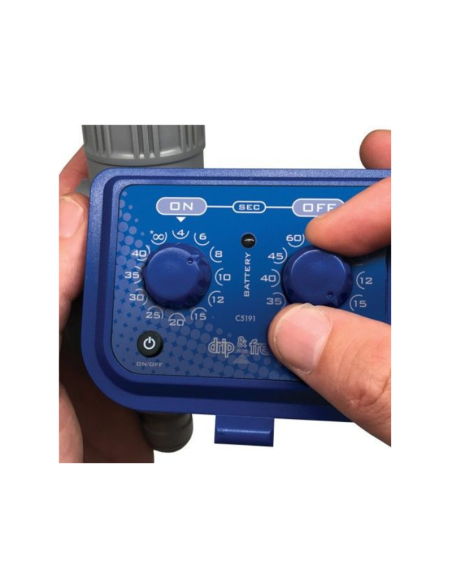

2. Configure the opening time (ON) by rotating the left dial.

3. Set the closing time (OFF) with the right dial.

4. If you want to maintain the active nebulization system on a continuous basis, place the ON dial in the ∞ option. In that case, the OFF dial is cancelled.

5. Remember to turn off the programmer after use to extend the battery life.

Main features

• Simple and fast programming through two dials.

• Till 133 possible combinations opening and closing.

• Low consumption thanks to your system solenoid by impulses.

• Low battery indicator via LED.

• Share this thing for battery.

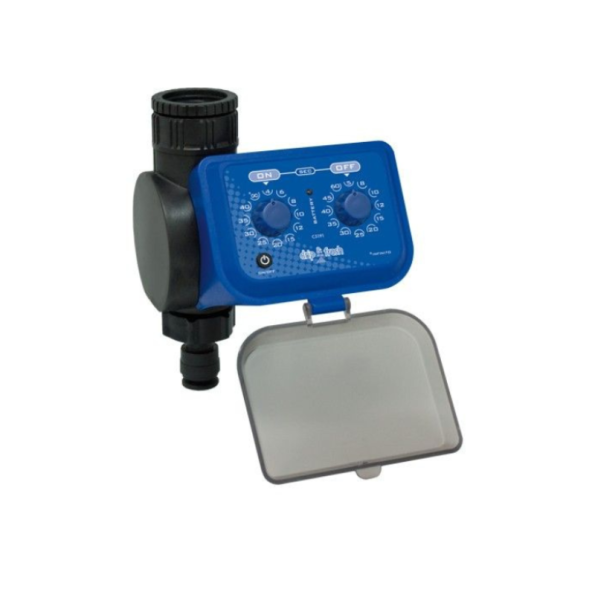

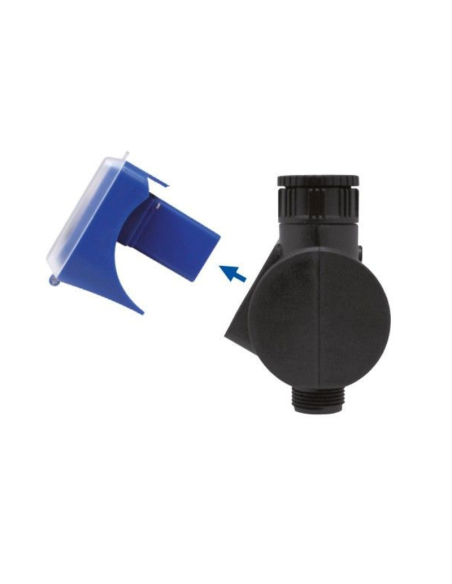

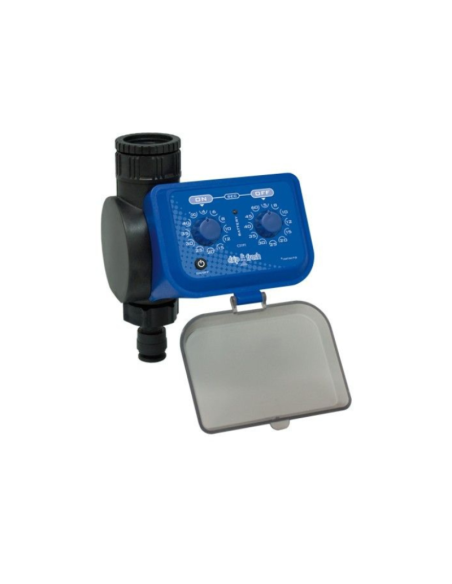

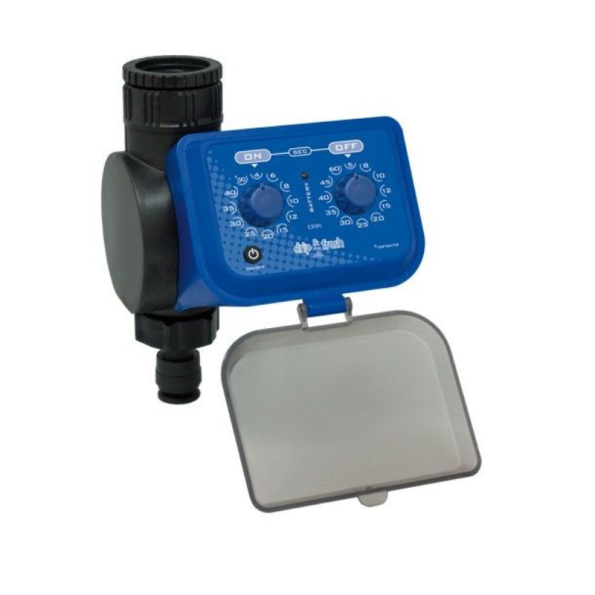

• Removable front and transparent protective cover.

• Metallic filter included to avoid obstructions.

• Includes 1/2” and 3/4” taps.

• Direct connection to pipe 3/8”.

• Minimum operating pressure: 1 Bar.

• It works only with cold water.

Recommended applications

• Residential nebulization systems: Terraces, patios and outdoor areas.

• Professional facilities: Invernaderos, farms, events or technical areas.

• Consumption and efficiency control: Ideal to minimize water use and maximize evaporation.

• Spaces where precise automation is required: Precise nebulization in sensitive or intermittent areas.

• Areas where required rapid evaporation and controlled.

Frequently asked questions

Does this programmer allow cycles for seconds?
Yeah, it's his main advantage. You can configure very brief openings and closures, adapted to the efficient evaporation of the water.

What kind of water should be used?
It should only be used with cold water.

What if the battery runs out?
Includes a low battery indicator that you notify in advance. The battery can be easily changed without disassembling the entire system.

Warranty and Support

The programmer includes official guarantee and specialized technical support.
Do you have any doubts about programming or its integration with your current system? Contact us and we advise you without commitment.
